تصميم Raft On Piles

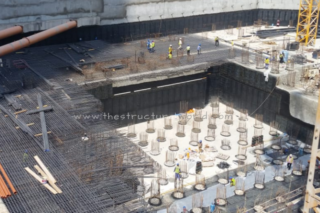

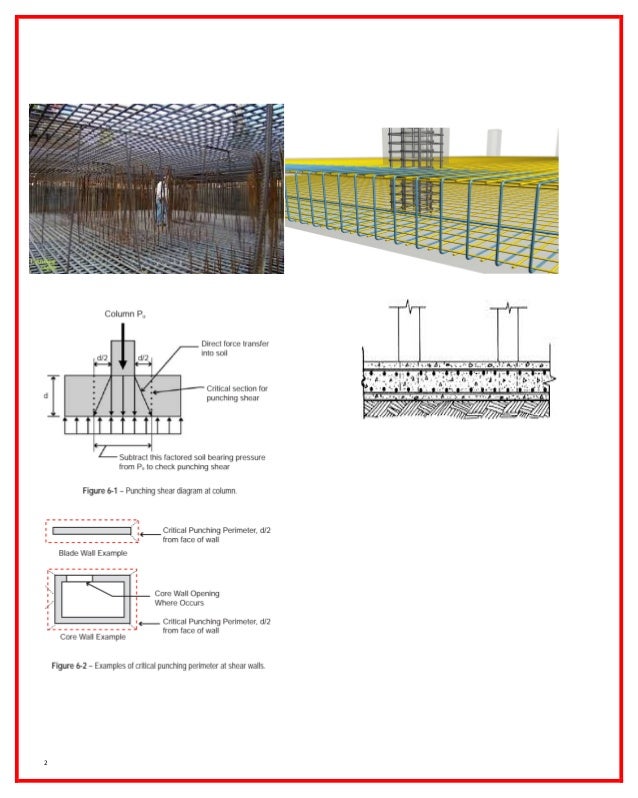

If piles are used then the critical location for the punching shear check may not be at a distance of d 2 as shown in figure 6 1 but instead at the location of the piles.

تصميم raft on piles. Figures 9 7 a 9 7 c and 9 7 d may be used to determine the location of the equivalent raft foundation and to evaluate the resulting pressure increase in a soil layer. Aci 312 14 13 4 2 5 c 12 p s 22 d d o 12 1s 22. Structural design of concrete piles. T beam design excel sheet.

Primary piles are installed first with secondary piles constructed in between primary piles once the latter gain sufficient strength. Group action and lateral resistance of vertical piles. The main advantages of secant or tangent pile walls. One and two way slab quantity.

Combined strap footing design. Load carrying capacity of piles by dynamic formulae. Design of pile cap excel sheet. In a tangent pile wall there is no pile overlap as the piles are constructed flush to each other.

A guide for practicing engineers 20 10. Mostafa elbadry 21 158 views 11 51. 7 seismic design of reinforced concrete mat foundations a guide for practicing engineers nist gcr 12 917 22. The settlement of each layer is then calculated using the appropriate settlement equation presented in section 9 3 2 for cohesive layers and from the following equation for cohesionless layers.

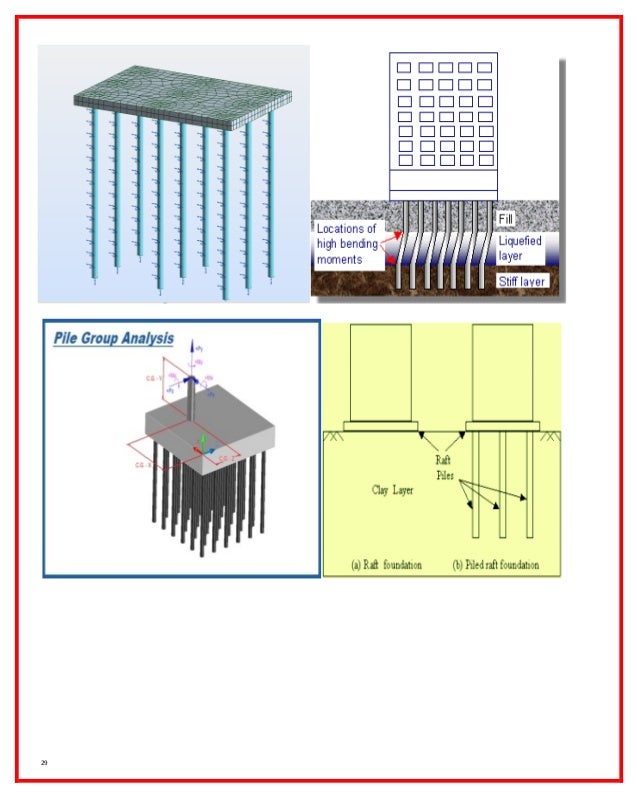

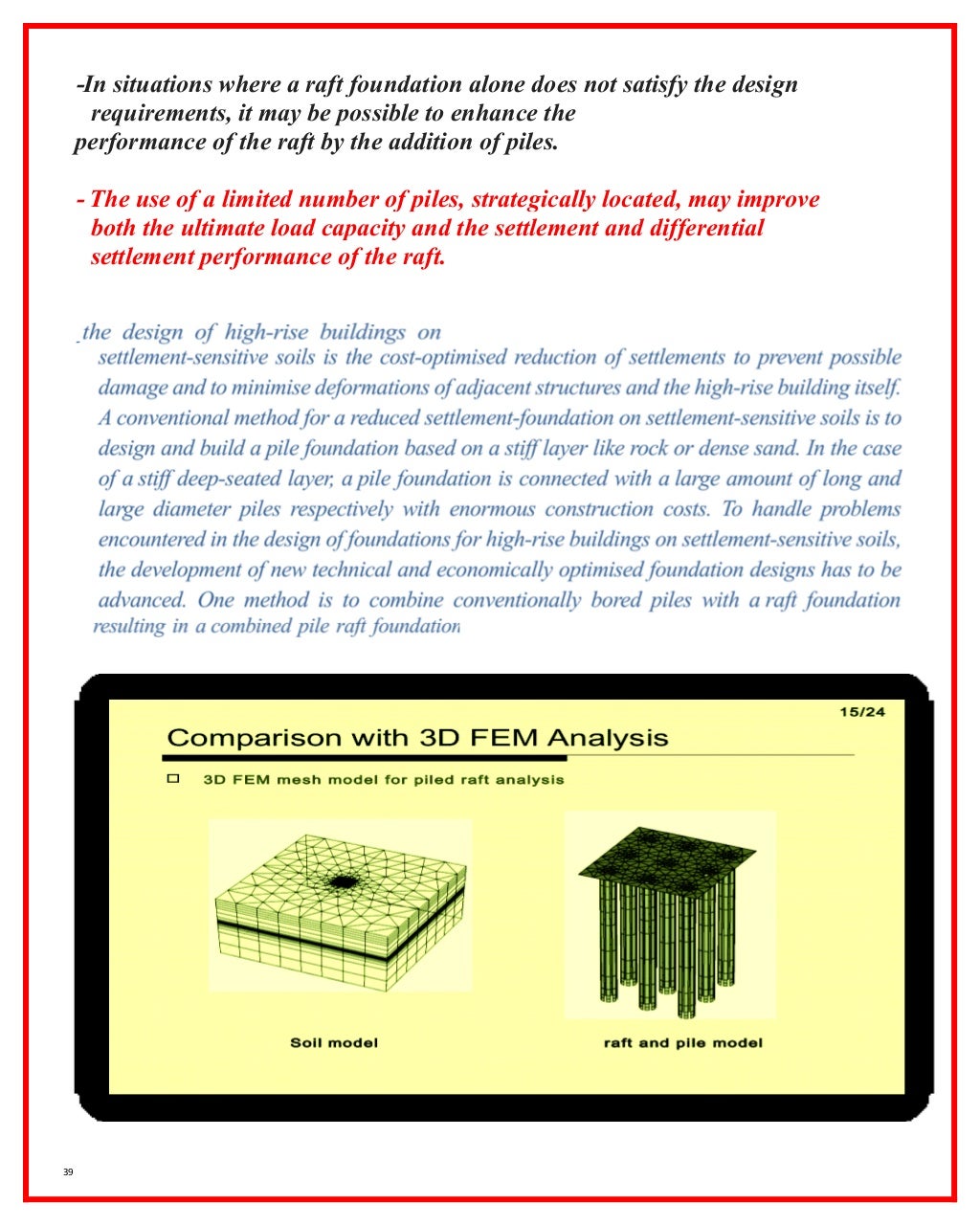

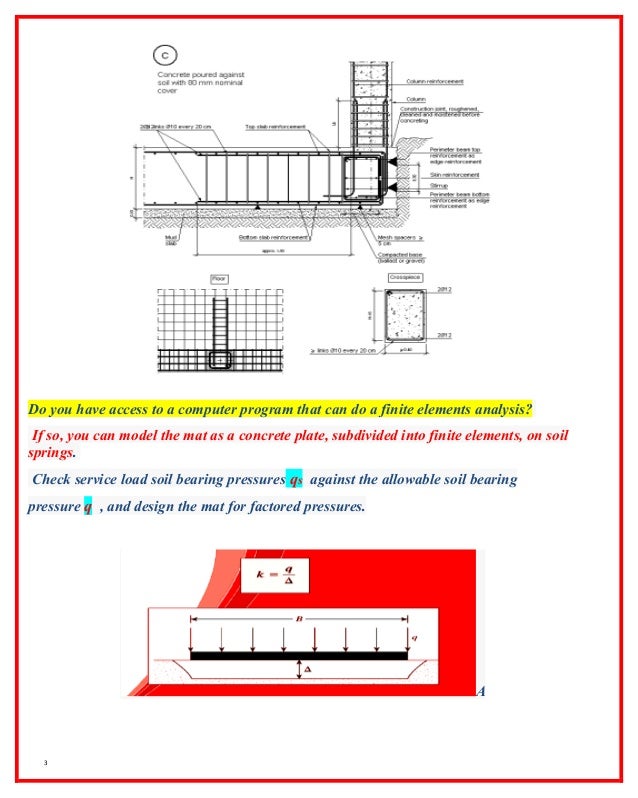

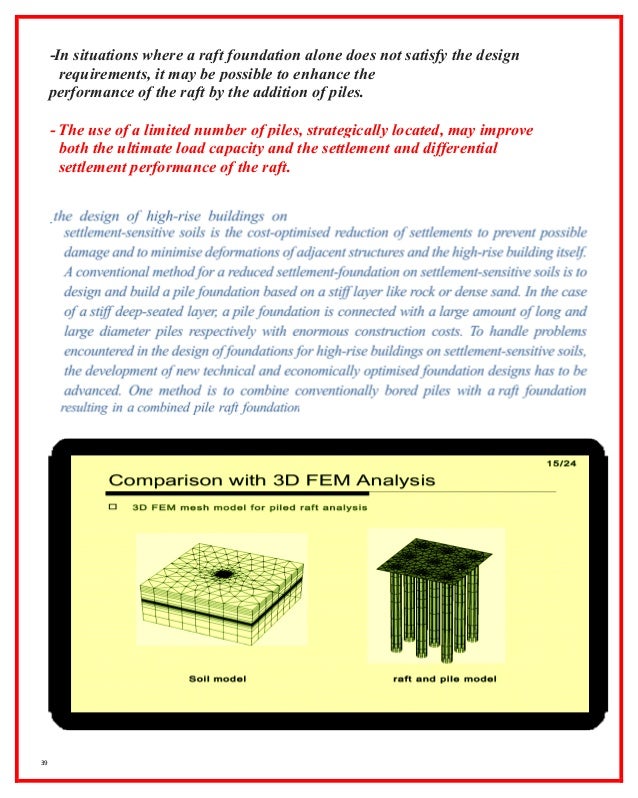

Design raft and raft on piles تصميم لبشة ولبشة علي خوازيق باستخدام برنامج السيف duration. 39 in situations where a raft foundation alone does not satisfy the design requirements it may be possible to enhance the performance of the raft by the addition of piles. Design of raft foundations. The use of a limited number of piles strategically located may improve both the ultimate load capacity and the settlement and differential settlement performance of the raft.

Construction of cast in situ piles. Nehrp seismic design technical brief no. Field tests on piles. Inside of the critical section which is less than d p 2.

Summary of bill of quantities civil works bar bending schedule. Seismic design of reinforced concrete mat foundations. Design of raft foundation. Load carrying capacity of piles by static formulae.

Pile overlap is typically in the order of 3 inches 8 cm. تصميم لبشة ولبشة علي خوازيق باستخدام برنامج السيف وكيفية حساب as spring for raft and piles وحساب عدد الخوازيق وكيفية رص. The two remaining piles are located 26 36 11 1 in.
